Data Model

The data model is central to the operation of superscore. Data is stored in one of six main dataclasses. These dataclasses can be split into two main categories:

  • Unfilled: Simply specifying the PVs to record

  • Filled: Holding PV-Data pairs, with data values being pulled from the EPICS controls system

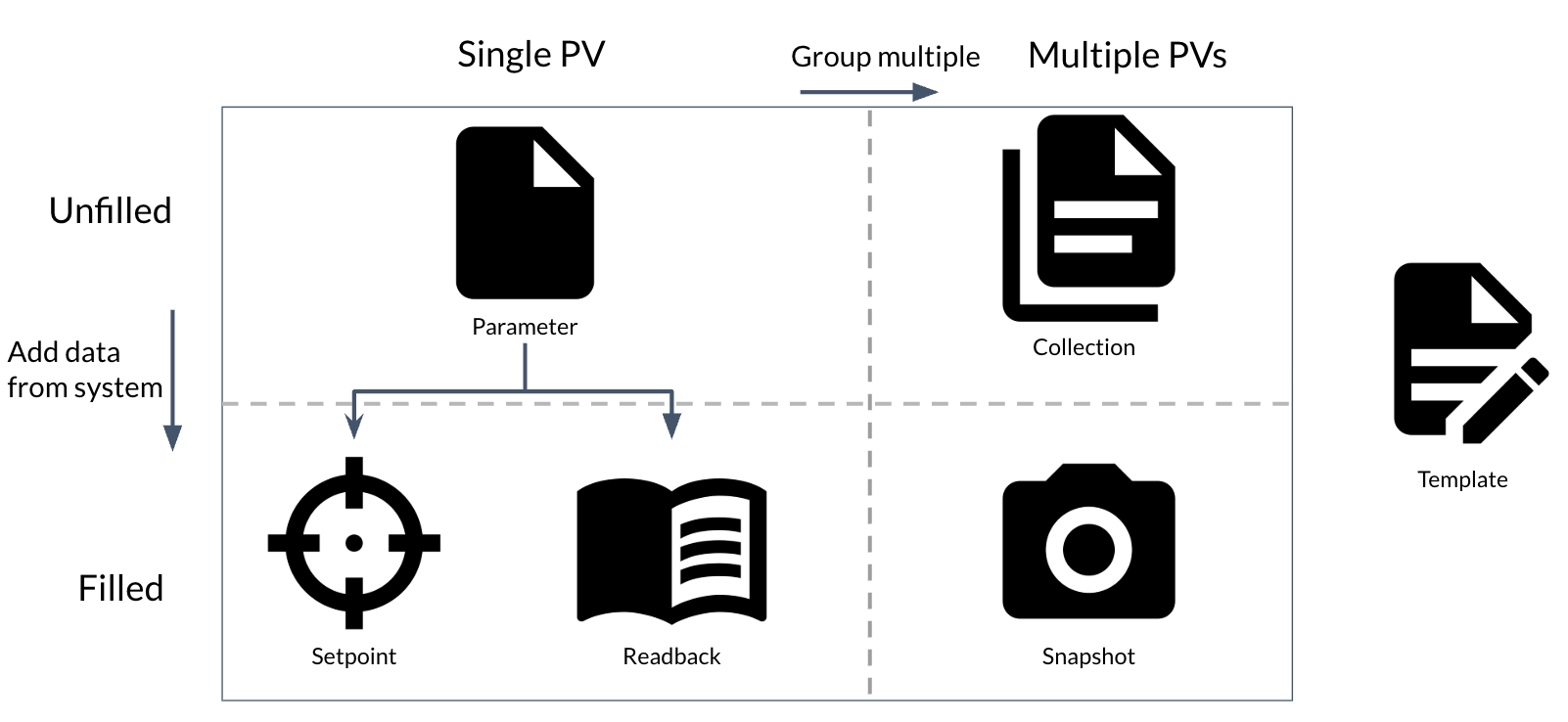

The relationships between these dataclasses are summarized in Figure 1:

Diagram of the relationships between dataclasses in superscore

Parameter PARAMETER

The Parameter is the building block of configurations in Superscore, holding an EPICS PV. Parameters can become either a Setpoint or Readback when filled with data from the controls system.

Setpoint SETPOINT

A Setpoint is a recorded value that can be written back to the system. Setpoints can have an associated Readback.

Readback READBACK

A Readback is a recorded value that cannot be written back to the system. Readback ‘s are meant to only store information from the system and to be used for comparison. In cases where setting the value of a PV might affect the value of a different PV, which might not necessarily match the setpoint value. For example, if moving the position of a motor is expected to directly affect the value of a related diode reading, one might set the motor’s position in a Setpoint and the diode’s voltage in a Readback

Collection COLLECTION

A Collection is a grouping of Parameter and Collection entries. By also allowing Collection ‘s to hold other Collection ‘s, we enable building configurations in an organized and hierarchical manner. When filled with data from the controls system, a Collection will become a Snapshot with matching internal structure.

Snapshot SNAPSHOT

A Snapshot is a filled Collection, comprised of Setpoint, Readback, and other Snapshot Entries. A Snapshot will mimic the structure of the Collection it was created from, as well as retain a link to that originating Collection. This ensures that users can recreate `Snapshot`s and understand the context of its origin.

Full Dataclass UML diagram

digraph "classes" { rankdir=BT charset="utf-8" bgcolor=transparent "superscore.model.Collection" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Collection" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Collection" tooltip="Collection" target="_top"><b>Collection</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Collection.all_tags " target="_top" tooltip="Collection.all_tags : ClassVar[Set]">all_tags : ClassVar[Set]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Collection.children " target="_top" tooltip="Collection.children : List[Union[UUID, Parameter, Collection]]">children : List[Union[UUID, Parameter, Collection]]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Collection.meta_pvs " target="_top" tooltip="Collection.meta_pvs : ClassVar[List[Parameter]]">meta_pvs : ClassVar[List[Parameter]]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Collection.tags " target="_top" tooltip="Collection.tags : Set">tags : Set</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Collection.title " target="_top" tooltip="Collection.title : str">title : str</td></tr> <tr><td align="left" tooltip=""><b>Methods:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Collection.swap_to_uuids" target="_top" tooltip="Collection.swap_to_uuids">swap_to_uuids(): List[Entry]</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Collection"]; "superscore.model.Entry" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Entry" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Entry" tooltip="Entry" target="_top"><b>Entry</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Entry.creation_time " target="_top" tooltip="Entry.creation_time : datetime">creation_time : datetime</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Entry.description " target="_top" tooltip="Entry.description : str">description : str</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Entry.uuid " target="_top" tooltip="Entry.uuid : UUID">uuid : UUID</td></tr> <tr><td align="left" tooltip=""><b>Methods:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Entry.swap_to_uuids" target="_top" tooltip="Entry.swap_to_uuids">swap_to_uuids(): List[Union[Entry, UUID]]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Entry.validate" target="_top" tooltip="Entry.validate">validate(toplevel: bool): ValidationResult</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Entry"]; "superscore.model.Nestable" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Nestable" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Nestable" tooltip="Nestable" target="_top"><b>Nestable</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Nestable.children " target="_top" tooltip="Nestable.children : List[Union[UUID, Entry]]">children : List[Union[UUID, Entry]]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Nestable.uuid " target="_top" tooltip="Nestable.uuid : UUID">uuid : UUID</td></tr> <tr><td align="left" tooltip=""><b>Methods:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Nestable.has_cycle" target="_top" tooltip="Nestable.has_cycle">has_cycle(parents): bool</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Nestable.validate" target="_top" tooltip="Nestable.validate">validate(toplevel: bool): ValidationResult</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Nestable.walk_children" target="_top" tooltip="Nestable.walk_children">walk_children(): Generator[Any, None, None]</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Nestable"]; "superscore.model.Parameter" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Parameter" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Parameter" tooltip="Parameter" target="_top"><b>Parameter</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Parameter.abs_tolerance " target="_top" tooltip="Parameter.abs_tolerance : Optional[float]">abs_tolerance : Optional[float]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Parameter.pv_name " target="_top" tooltip="Parameter.pv_name : str">pv_name : str</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Parameter.read_only " target="_top" tooltip="Parameter.read_only : bool">read_only : bool</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Parameter.readback " target="_top" tooltip="Parameter.readback : Optional[Parameter]">readback : Optional[Parameter]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Parameter.rel_tolerance " target="_top" tooltip="Parameter.rel_tolerance : Optional[float]">rel_tolerance : Optional[float]</td></tr> <tr><td align="left" tooltip=""><b>Methods:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Parameter.validate" target="_top" tooltip="Parameter.validate">validate(toplevel: bool): ValidationResult</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Parameter"]; "superscore.model.Readback" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Readback" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Readback" tooltip="Readback" target="_top"><b>Readback</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Readback.abs_tolerance " target="_top" tooltip="Readback.abs_tolerance : Optional[float]">abs_tolerance : Optional[float]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Readback.data " target="_top" tooltip="Readback.data : Optional[AnyEpicsType]">data : Optional[AnyEpicsType]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Readback.pv_name " target="_top" tooltip="Readback.pv_name : str">pv_name : str</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Readback.rel_tolerance " target="_top" tooltip="Readback.rel_tolerance : Optional[float]">rel_tolerance : Optional[float]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Readback.severity" target="_top" tooltip="Readback.severity">severity</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Readback.status" target="_top" tooltip="Readback.status">status</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Readback.timeout " target="_top" tooltip="Readback.timeout : Optional[float]">timeout : Optional[float]</td></tr> <tr><td align="left" tooltip=""><b>Methods:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Readback.from_parameter" target="_top" tooltip="Readback.from_parameter">from_parameter(origin: Parameter, data: AnyEpicsType, status: Status, severity: Severity, timeout: Optional[float]): Readback</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Readback"]; "superscore.model.Root" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Root" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Root" tooltip="Root" target="_top"><b>Root</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Root.entries " target="_top" tooltip="Root.entries : List[Entry]">entries : List[Entry]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Root.uuid " target="_top" tooltip="Root.uuid : UUID">uuid : UUID</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Root"]; "superscore.model.Setpoint" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Setpoint" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Setpoint" tooltip="Setpoint" target="_top"><b>Setpoint</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Setpoint.data " target="_top" tooltip="Setpoint.data : Optional[AnyEpicsType]">data : Optional[AnyEpicsType]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Setpoint.pv_name " target="_top" tooltip="Setpoint.pv_name : str">pv_name : str</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Setpoint.readback " target="_top" tooltip="Setpoint.readback : Optional[Readback]">readback : Optional[Readback]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Setpoint.severity" target="_top" tooltip="Setpoint.severity">severity</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Setpoint.status" target="_top" tooltip="Setpoint.status">status</td></tr> <tr><td align="left" tooltip=""><b>Methods:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Setpoint.from_parameter" target="_top" tooltip="Setpoint.from_parameter">from_parameter(origin: Parameter, data: AnyEpicsType, status: Status, severity: Severity): Setpoint</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Setpoint.validate" target="_top" tooltip="Setpoint.validate">validate(toplevel: bool): ValidationResult</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Setpoint"]; "superscore.model.Severity" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Severity" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Severity" tooltip="Severity" target="_top"><b>Severity</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Severity.name" target="_top" tooltip="Severity.name">name</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Severity"]; "superscore.model.Snapshot" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Snapshot" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Snapshot" tooltip="Snapshot" target="_top"><b>Snapshot</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Snapshot.children " target="_top" tooltip="Snapshot.children : List[Union[UUID, Readback, Setpoint, Snapshot]]">children : List[Union[UUID, Readback, Setpoint, Snapshot]]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Snapshot.meta_pvs " target="_top" tooltip="Snapshot.meta_pvs : List[Readback]">meta_pvs : List[Readback]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Snapshot.origin_collection " target="_top" tooltip="Snapshot.origin_collection : Optional[Union[UUID, Collection]]">origin_collection : Optional[Union[UUID, Collection]]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Snapshot.tags " target="_top" tooltip="Snapshot.tags : Set">tags : Set</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Snapshot.title " target="_top" tooltip="Snapshot.title : str">title : str</td></tr> <tr><td align="left" tooltip=""><b>Methods:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Snapshot.swap_to_uuids" target="_top" tooltip="Snapshot.swap_to_uuids">swap_to_uuids(): List[Union[Entry, UUID]]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Snapshot.validate" target="_top" tooltip="Snapshot.validate">validate(toplevel: bool): ValidationResult</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Snapshot"]; "superscore.model.Status" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Status" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Status" tooltip="Status" target="_top"><b>Status</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Status.name" target="_top" tooltip="Status.name">name</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Status"]; "superscore.model.Template" [color="black", fontcolor="black", label=<<table border="0" align="left" tooltip="Template" width="0" cellpadding="0"> <tr><td border="1" href="./superscore.model.html#superscore.model.Template" tooltip="Template" target="_top"><b>Template</b></td></tr> <tr><td align="left" tooltip=""><b>Attributes:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Template.placeholders " target="_top" tooltip="Template.placeholders : dict[str, str]">placeholders : dict[str, str]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Template.template_collection " target="_top" tooltip="Template.template_collection : Union[Collection, UUID]">template_collection : Union[Collection, UUID]</td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Template.title " target="_top" tooltip="Template.title : str">title : str</td></tr> <tr><td align="left" tooltip=""><b>Methods:</b></td></tr> <tr><td align="left" href="./superscore.model.html#superscore.model.Template.swap_to_uuids" target="_top" tooltip="Template.swap_to_uuids">swap_to_uuids(): List[Union[Entry, UUID]]</td></tr></table>>, shape="record", style="solid", URL="./superscore.model.html#superscore.model.Template"]; "superscore.model.Collection" -> "superscore.model.Entry" [arrowhead="empty", arrowtail="none"]; "superscore.model.Collection" -> "superscore.model.Nestable" [arrowhead="empty", arrowtail="none"]; "superscore.model.Parameter" -> "superscore.model.Entry" [arrowhead="empty", arrowtail="none"]; "superscore.model.Readback" -> "superscore.model.Entry" [arrowhead="empty", arrowtail="none"]; "superscore.model.Setpoint" -> "superscore.model.Entry" [arrowhead="empty", arrowtail="none"]; "superscore.model.Snapshot" -> "superscore.model.Entry" [arrowhead="empty", arrowtail="none"]; "superscore.model.Snapshot" -> "superscore.model.Nestable" [arrowhead="empty", arrowtail="none"]; "superscore.model.Template" -> "superscore.model.Entry" [arrowhead="empty", arrowtail="none"]; "superscore.model.Readback" -> "superscore.model.Severity" [arrowhead="vee", arrowtail="none", fontcolor="green", label="severity", style="solid"]; "superscore.model.Setpoint" -> "superscore.model.Severity" [arrowhead="vee", arrowtail="none", fontcolor="green", label="severity", style="solid"]; "superscore.model.Readback" -> "superscore.model.Status" [arrowhead="vee", arrowtail="none", fontcolor="green", label="status", style="solid"]; "superscore.model.Setpoint" -> "superscore.model.Status" [arrowhead="vee", arrowtail="none", fontcolor="green", label="status", style="solid"]; "superscore.model.Collection" -> "superscore.model.Snapshot" [arrowhead="odiamond", arrowtail="none", fontcolor="green", label="origin_collection", style="solid"]; }

Classes of superscore.model
